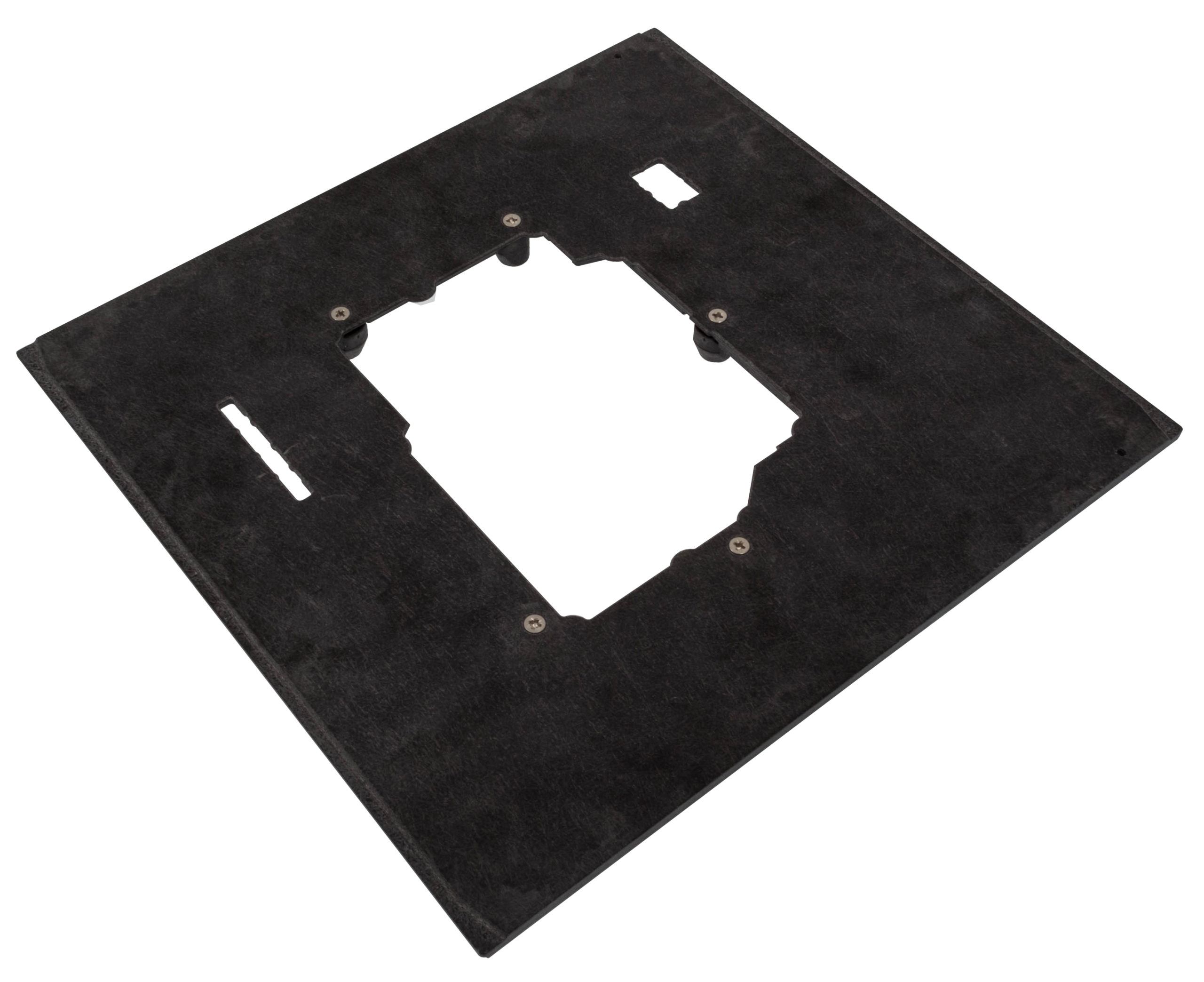

Also known as Wave Solder Fixtures or Solder pallets this tooling is manufactured in high performance, high temperature composite sheets known as Durostone or Ricocel. Increase your production rates by implementing multi-aperture fixtures, ideal for odd shaped PCB’s, also solder masking of ground planes saving on costly polyimide tapes application. Tophat design for components orientation or hold down during soldering.

For further information please contact our Technical Sales Team on 01291 624400 or email our design team at

Key Product Features and Benefits:

– Multiple aperture design.
– Support odd shaped boards.
– Manufactured using Thermally stable composite material.
– Enables correct component orientation.
– Fast and ergonomic clamping systems.
