BOFA’s 50mm Stay Put Arms are part of BOFA’s ESD Extraction Accessory range, designed for use on the bench top in conjunction with their Flip Top Seal system.

Flexible extraction arms are used to capture fumes ‘at source”, and if used correctly, they can be an efficient method of preventing exposure to hazardous fumes and vapours in the workplace.

This selection of Stay Put Arms is designed for use with BOFA Volume Extraction Systems and require a 50mm Hose Kit and Bench Mounted Flip Top System for connection to the fume extractor. They can not be connected directly to the system itself. These BOFA arms are designment to ‘stay put’ but can be repositioned by twisting to tighten or loosen. Manufactured from black carbon loaded compressed polystyrene construction, this range of arms have ESD static control properties for use in Electronic production areas where static elimination is very important.

This arm is for use with BOFA V200 & V250 Extractors.

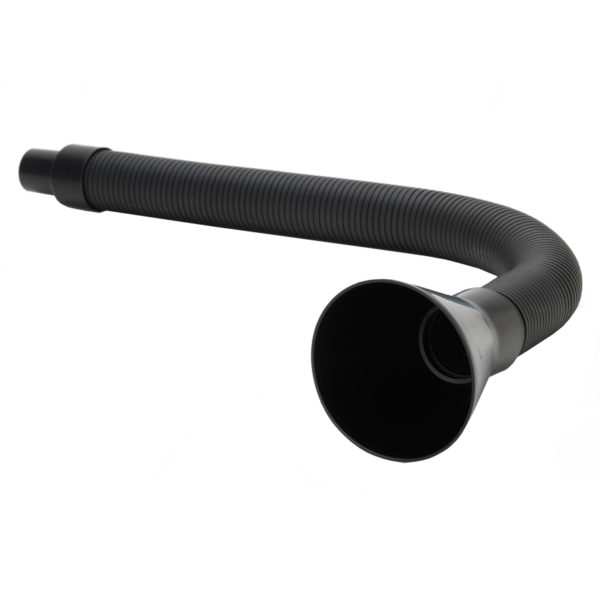

Available with a range of nozzles, dependent on your application. The arms are 50mm diameter and 790mm in length.
32mm and 75mm ESD Stay Put Arm options are also available.

Nozzle Options:
– A1020045 – Funnel (100mm diameter)
– A1020047 – Pen Nib Nozzle (40mm diameter with 90° slant)
– A1020049 – Slot / Fish Tail (200mm width with 20mm height)
– A1020179 – Plenum Funnel

Key Product Features & Benefits:

– 50mm Diameter for use with V200 / V250 units
– 790mm Length
– Easy adjustment & Stay Put Positioning
– ESD Properties
– Four Nozzle Options available

Weight N/A

With Funnel, With Pen Nib, With Plenum Funnel, With Slot
