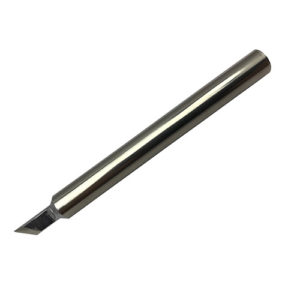

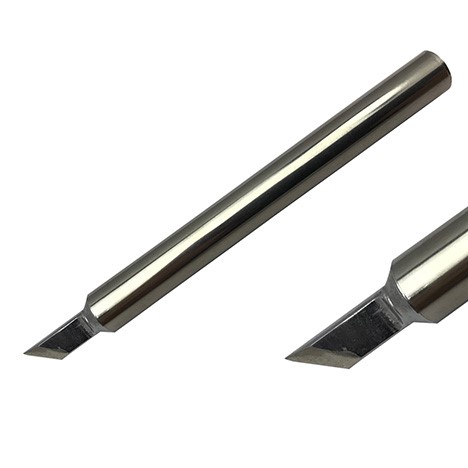

TxP-BLP2 are a range of 2mm Blade Tweezer for use with the MFR Series Soldering System. The Metcal TxP Cartridges for the MFR-H4-TW Hand-piece provides an efficient solution for removal and replacement of chip and SOIC packages.
Fixed temperature cartridges and tips offer users a fully safe and thermally effective solution to their lead-free soldering needs as well as complete process control. SmartHeat® technology is unique in that it senses the specific thermal demand directly at the solder pad and delivers the precise quantity and flow of thermal energy during both flux activation and intermetallic bonding phases without any adjustment and calibration.
TxP-BLP2 is available in three specifications, dependant on application. The second digit denotes substrate material (damage tolerance):
T Series ‘ Max Temperature: 366°C ‘ Temperature Sensitive Applications (TFP-BLP2)
F Series ‘ Max Temperature: 421°C ‘ FR4 / Fiberglass for Most Standard Applications (TFP-BLP2)
C Series ‘ Max Temperature: 471°C – For Ceramic & High Thermal Demand (TCP-BLP2)
Key Product Features & Benefits:
– 2 mm Diameter
– 14 mm Length
– Style ‘ Blade
– Pair of Tweezer Tips
– Available in three specifications, dependant on temperature/application.
– For use with MFR-H4-TW.handpiece
