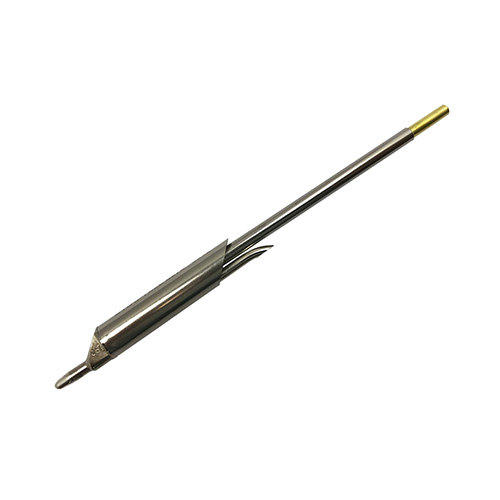

STDC-x05L are a range of 1.27mm Long Reach Desoldering Cartridges for use with the MX Series Soldering Systems. The STDC tips are highly durable and designed for high heat transfer, making desoldering on multi-layer boards much easier. SmartHeat® technology is unique in that it senses the specific thermal demand directly at the solder pad and delivers the precise quantity and flow of thermal energy during both flux activation and intermetallic bonding phases without any adjustment and calibration.
STDC-x05L is available in two specifications, dependant on application:
7 Series – Max Temperature: 413°C – Most Standard Applications (STDC-105L)
8 Series – Max Temperature: 510°C – For Ceramic & High Thermal Demand (STDC-805L)
Key Product Features & Benefits:

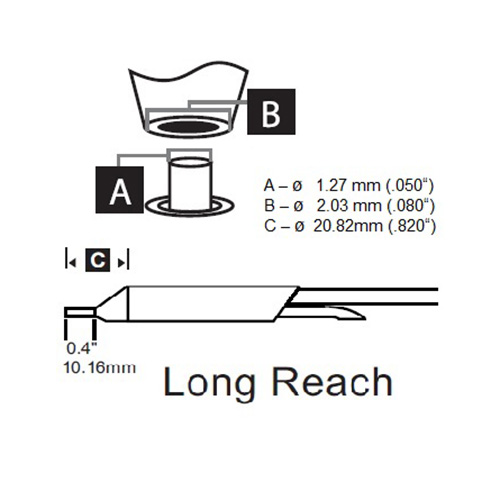

– 1.27 x 2.03 x 20.82 mm (A x B x C)
– Style – Desolder Long Reach
– Available in two specifications, dependant on temperature/application.
– For use with MX-DS1 handpiece
