BOFA’s 3D PrintPRO 2 Extraction System is a low-cost unit, designed to extract fumes & particulates generated by open-framed 3D Printers.

The BOFA 3D PrintPRO 2 is built to extract fumes and particulates generated by an open framed 3D printer without causing the filament deposition area to be cooled. The 3D PrintPRO 2 has 2-stage filtration for highly effective fume and particulate (dust) removal and filtering. The 3D PrintPRO 2 is quiet and has minimal power consumption with an integrated speed controller. The motor automatically senses the required voltage for each country, from 90 volts to 257 volts. making it a global product with minimal fuss. Each unit is supplied with a connection hose, ‘Stay Put’ extraction arm and a conical shaped extraction nozzle.

The BOFA PrintPRO 2 complies with HSE and COSHH requirements for controlling airborne contaminants in the workplace when correctly used to extract fume and dust from 3D printing applications. This Extractor is ideal for applications including Low Volume 3D Printing, Open Framed 3D Printers and for use within Schools.

Don’t have a way to connect your 3D printer to our extractors? Connectors for your 3D printer can be printed from the files linked here or as part of our 3D Printing Service.

Unit with Installation Kit (P/N: 32111000-1584) Contains:

– 3D PrintPRO 2 Extractor Unit
– BOFA Pre-Filter (A1030102 ) and Combined HEPA/Gas Filter (A1030099 )
– Installation Kit (A1020372): 50mm Stay Put Arm with Funnel (A1020045) x 1, 1.5M Flexi Hose (A1080007) x 1, 50mm Table Bracket (A1020051) x 1, Auto Flush Seal Kit (A1020052) x 1 & Jubilee Clips (A1080008) x 2

Other Options & Replacement Parts::

– If you require the optional feature of a Stop/Start Interface please contact our sales Office to arrange a quotation.

Key Product Features & Benefits:

– Supplied as Unit only or with Installation kit

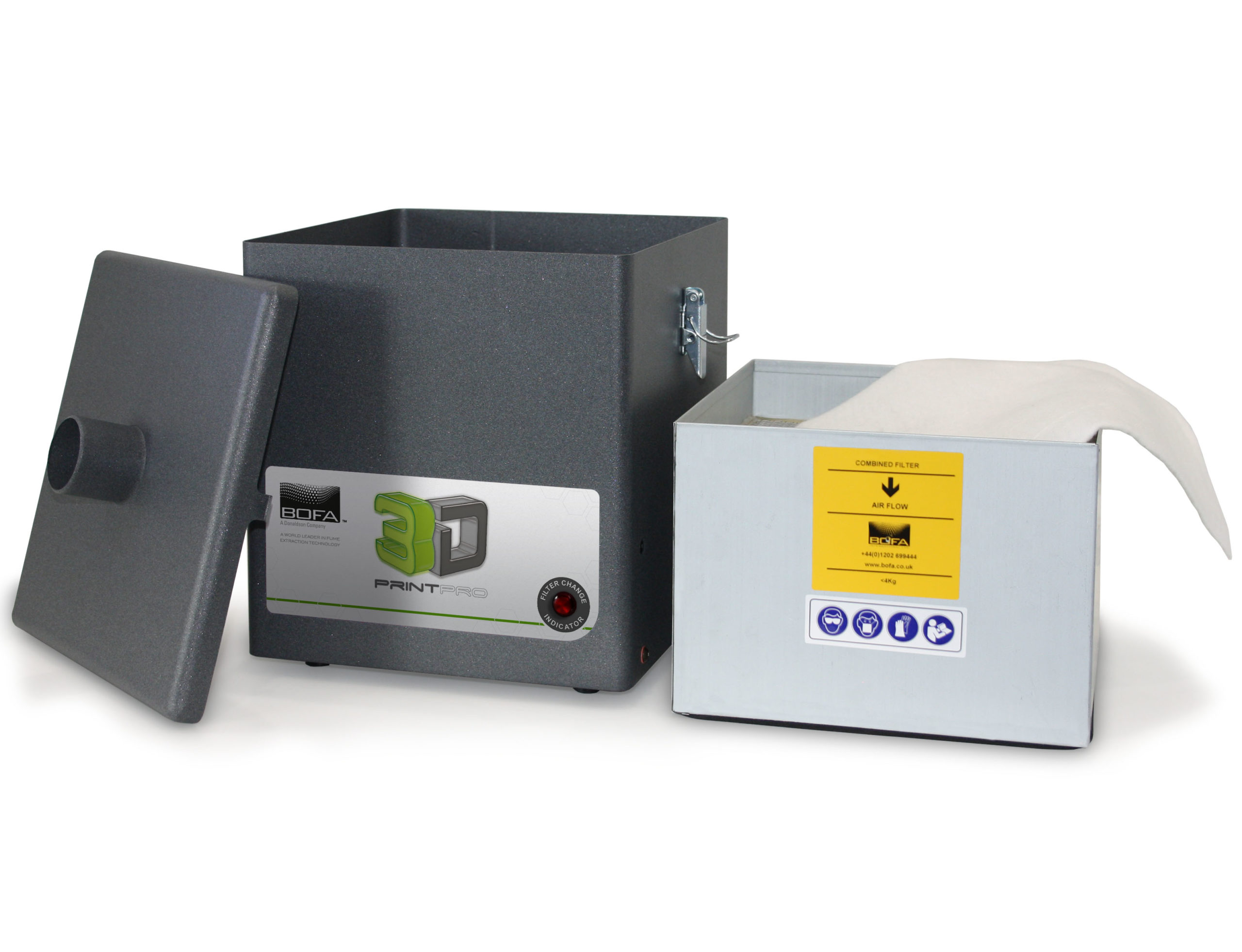

– 3 level filtration – Pre, HEPA, and chemical filters
– Uses both a BOFA Pre-Filter (A1030102 ) & Combined HEPA/Gas Filter (A1030099 )
– Filter change indicator
– Filters with long life and low replacement cost
– Powder coated for durability
– Hose kit included
– Compact size
– Small footprint
– Low noise levels
– Powder Coated Finish

Weight N/A

With Installation Kit
