SxP-DRH05 are a range of 0.5mm Rework Hoof for use with the MFR Series Soldering System. The Metcal SxP Cartridges are for use with the MFR-H1-SC2 soldering cartridge handpiece. They provide a wide range of options addressing specialized soldering and rework applications.
Fixed temperature cartridges and tips offer users a fully safe and thermally effective solution to their lead-free soldering needs as well as complete process control. SmartHeat® technology is unique in that it senses the specific thermal demand directly at the solder pad and delivers the precise quantity and flow of thermal energy during both flux activation and intermetallic bonding phases without any adjustment and calibration.
SxP-DRH05 is available in three specifications, dependant on application. The second digit denotes substrate material (damage tolerance):
T Series – Max Temperature: 366°C – Temperature Sensitive (STP-DRH05)
F Series – Max Temperature: 421°C – FR4 / Fiberglass for Most Standard Applications (SFP-DRH05)
C Series – Max Temperature: 471°C – For Ceramic & High Thermal Demand (SCP-DRH05)
Key Product Features & Benefits:

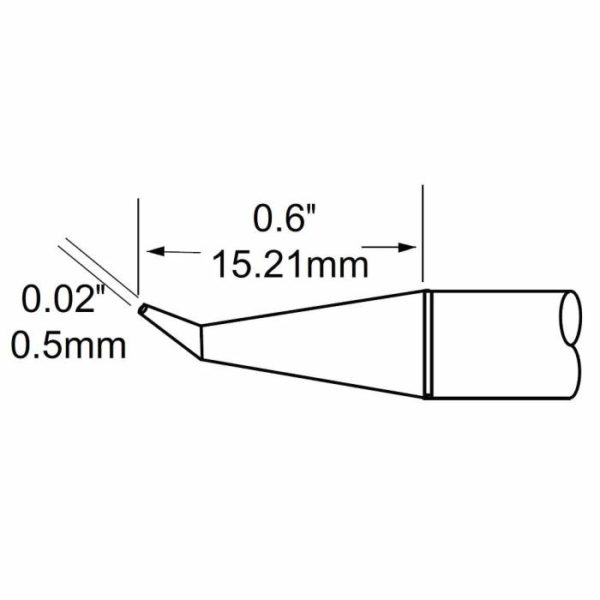

– 0.5 mm Diameter
– 15.21 mm Length
– Style – Rework Hoof
– Available in three specifications, dependant on temperature/application.
– For use with MFR-H2-ST2 handpiece
