Solder tips represent a significant part of the cost of ownership for a solder station.

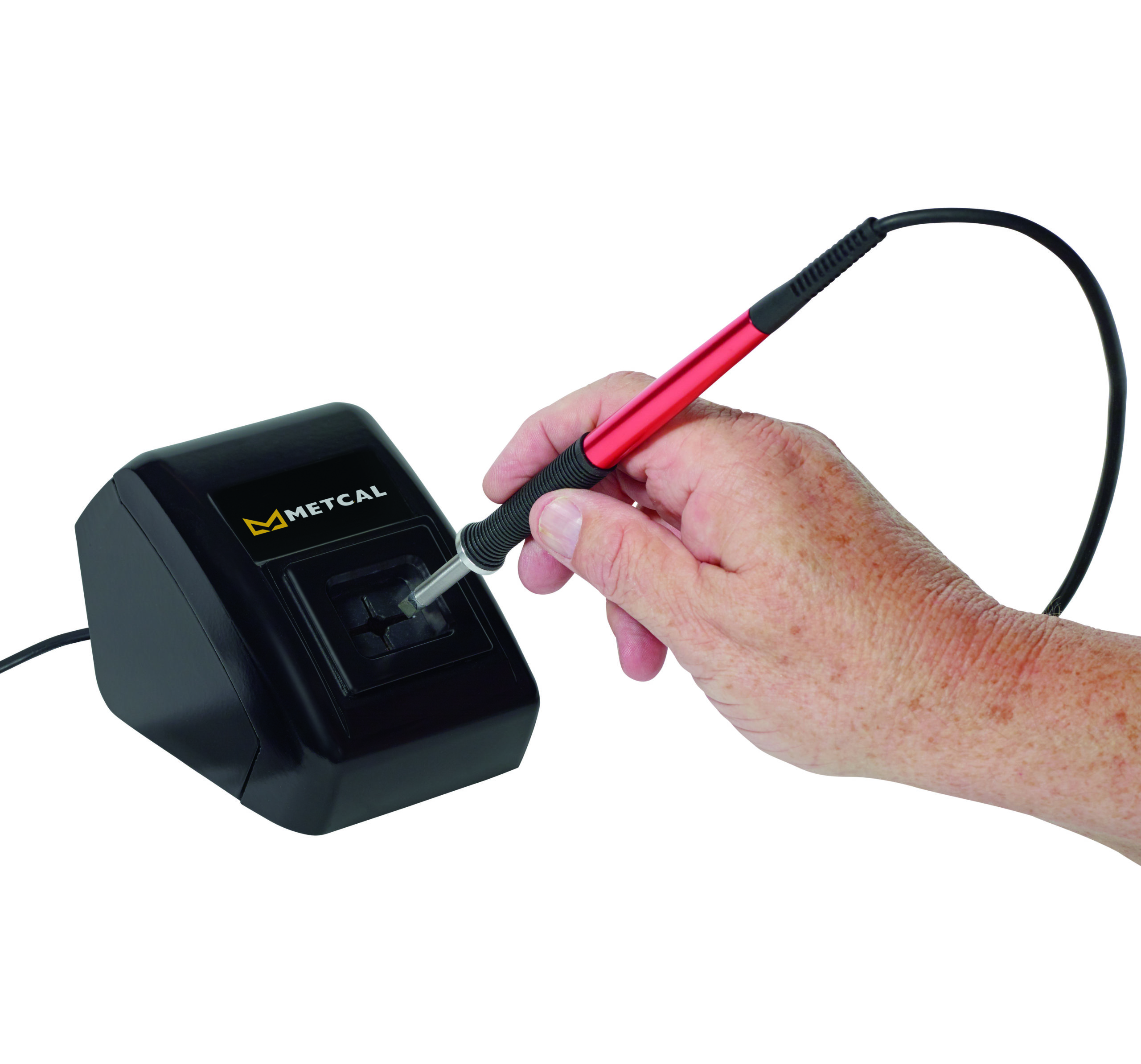

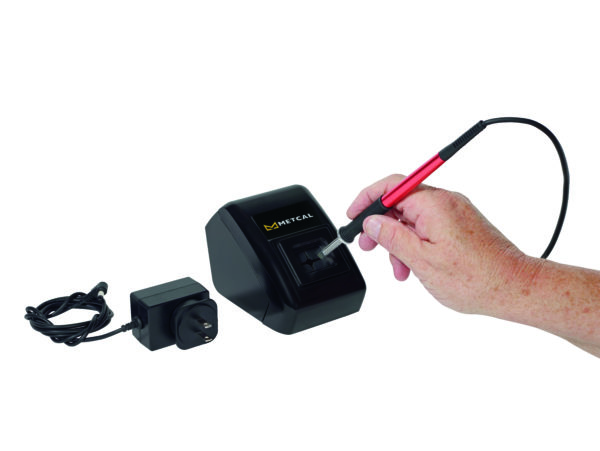

Metcal’s new AC-STC Solder Tip Cleaner removes oxidation and extends the life of the solder tip. By placing the tip into the opening, the tip cleaner senses the tip and automatically activates saving the operator time. A replaceable brush system pulls excess solder away from the tip into a removable collection tray for disposal while removing oxidation from the tip. A splashguard prevents debris from escaping the collection area. The unit ships with a universal AC power adapter that ensures the unit is ready for use.

Key Product Features & Benefits:

– Contactless activation
– Compact footprint takes only minimal area on your benchtop.
– Replaceable brush system allows for easy replacement of the solder brush.
– Universal power supply
– ESD safe
– Ambient Operating Temperature: 10 to 40°C
– Input Line Voltage: 24 VDC
– Certifications: cNRTLus, CE, RoHS + WEEE
– Surface Resistivity: 106 – 1011 Ohms/Sq
– Dimensions: 14cm x 8.5 cm x 10 cm
– Weight: 0.83 kg (1.8 lbs)
– Brush speed: 115 rpm
– Brush Diameter: 25mm

Technical Bulletin
Weight N/A

Replacement Brushes PK 2, Tip Cleaner
